R1150 GS - 03/2003 - Correct Front ABS Sensor

[chopper_harris]

I need help to identity the correct front wheel ABS sensor for a March 2003 R1150 GS with whizzy brakes.

I have posted a WTB, but thought I might get a better response to a question here.
The fiche sites are ambiguous about the correct ABS sensor for an early 2003 GS.

Any practical advice and help with the WTB will be gratefully received.



[theoneandonly]

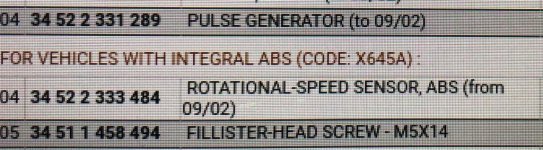

according to oem fiche

you have picked the later sensor , seems correct , ask MW's.



[Ian J Hartley]

As far as I am aware, the production run for the Twin spark with integral ABS (iABS) started in September 02. So if the bike is a twin spark , then the later sensor is the item required.

if your ABS ring is pressed stainless steel then it is the post 09/02.
