Din female connector

[vtr1000sp1]

Hi, would anyone know where to source a the DIN female connector as used for the Din socket under the seat/on the left of the bike?

it’s the one that this plugs into https://www.nippynormans.com/f800-a...-usb-socket-for-bmw-motorcycles-plug-and-play



[Schtum]

Hi, would anyone know where to source a the DIN female connector as used for the Din socket under the seat/on the left of the bike?

it’s the one that this plugs into https://www.nippynormans.com/f800-a...-usb-socket-for-bmw-motorcycles-plug-and-play

Hella Socket



[Smiffypr]

Hi, would anyone know where to source a the DIN female connector as used for the Din socket under the seat/on the left of the bike?

it’s the one that this plugs into https://www.nippynormans.com/f800-a...-usb-socket-for-bmw-motorcycles-plug-and-play

The "DIN" socket is what this part replaces. To my knowledge, where it plug into the harness is not called a DIN anything. You would need a picture of one to work out what it is. Probably Bosch.



[vtr1000sp1]

Thanks both. It’s the connector I want. I have the part I linked to but want to mount it in the cockpit area there is a power socket ther which I’m already using to run a quad lock mount, plus it’s adifferent connector. I‘ve already made A fly wire to hook up the quad lock mount nd now want to splice this type of connector in.



[vtr1000sp1]

Think I’ve found the one. Will leave thus hear for future reference if anyone needs it.

83300402342​



[gazza12adv]

Do you mean one of these.

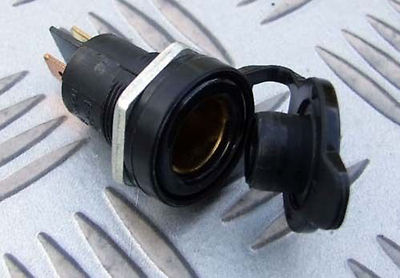

12 VOLT PANEL SOCKET & COVER HELLA GERU DIN FITMENT MOTORHOME CARAVAN BOAT BIKE | eBay

12 or 24 Volt DC Hella Geru type DIN standard panel socket. Panel hole size required 18mm. We would always appreciate the opportunity to put things right if there is a problem of any kind. Suitable for 12 or 24V DC systems.

www.ebay.co.uk

I've used similar to add a din socket to my other bikes to use my Nav V
Cheaper than your link above



[gazza12adv]

Do you mean one of these.

12 VOLT PANEL SOCKET & COVER HELLA GERU DIN FITMENT MOTORHOME CARAVAN BOAT BIKE | eBay

12 or 24 Volt DC Hella Geru type DIN standard panel socket. Panel hole size required 18mm. We would always appreciate the opportunity to put things right if there is a problem of any kind. Suitable for 12 or 24V DC systems.

www.ebay.co.uk

I've used similar to add a din socket to my other bikes to use my Nav V
Cheaper than your link above

Just seen schtums post above , same as



[PitaNaanRoti]

I’ve got loads of those
